2024 RayZR

£2,301

Make an Enquiry Test Ride Enquiry Part Exchange Enquiry Generate Finance Quote

2024 RayZR Promotions


Model Description


Play the Ray

Affordable, reliable and good looking, Yamaha’s new RayZR scooter gives you total freedom to be where you want to be. And with its economical 125cc engine and lightweight chassis, this is the smartest choice for daily urban transportation.

You’re in for a surprise when you see how much this entry level scooter has to offer! Its economical 125cc Blue Core engine features a special Power Assist for faster acceleration – and weighing only 98 kg the RayZR is so agile in busy urban streets. And there’s plenty of storage space for a helmet* or shopping. (*Depending on the shape of the helmet, certain models may not fit.)

Its wide dual seat ensures a relaxed ride on every journey. The RayZR can be ridden with a CBT** – and with Yamaha’s renowned reliability and a wide dealer network, peace of mind comes as standard. (**Limitations and restrictions may apply per country under applicable local laws. Additionally, Yamaha recommends all riders to take a motorcycle training course before riding any two or three wheeled vehicles.)

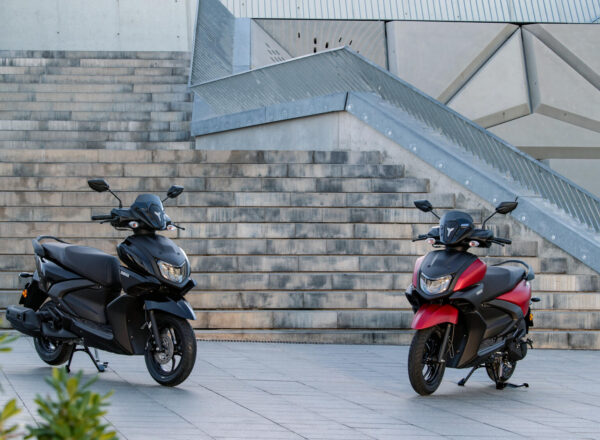

Colours

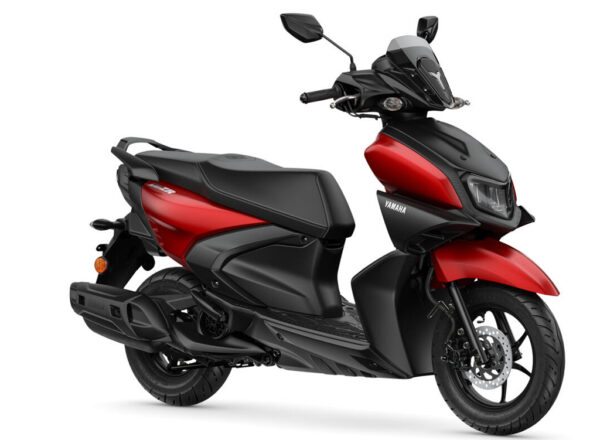

– Anodized Red

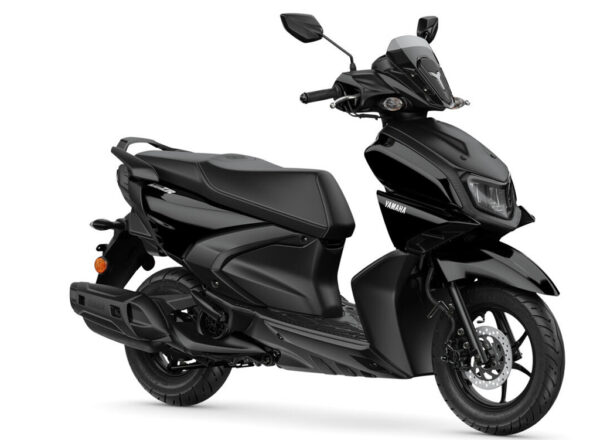

– Midnight Black

Generate a Finance Quote

New model finance is calculated off the models paint colour or finish, please select your desired colour below to return a more accurate finance quote.


Model Specification


  • Engine

    Engine Type

    4-stroke, SOHC, 2-valves, Air-cooled

    Displacement

    125 cc

    Bore x Stroke

    52.4 × 57.9 mm

    Compression Ratio

    10.2:1

    Maximum Power

    6.0kW @ 6,500 rpm

    Maximum Torque

    9.7Nm @ 5,000 rpm

    Starter System

    Electric Starter and Kickstarter

    Transmission

    V-Belt Automatic

    Lubrication System

    Wet sump

    Clutch Type

    Ignition System

    TCI

    Final Transmission

    Fuel Consumption

    1.8 l / 100 km

    CO2 Emissions

    42 g / km

    Fuel System

    Fuel Injection

  • Dimensions

    Oil Tank Capacity

    Fuel Tank Capacity

    5.2 l

    Length (mm)

    1,880 mm

    Width (mm)

    685 mm

    Height (mm)

    1,190 mm

    Wheel Base (mm)

    1,280 mm

    Weight (kg)

    99 kg

    Ground Clearance (mm)

    145 mm

  • Frame

    Front Tyre

    90/90-12 Tubeless

    Rear Tyre

    110/90-10 Tubeless

    Frame

    Caster Angle

    Trail

    Front Suspension System

    Telescopic forks

    Rear Suspension System

    Unit Swing

    Front Travel

    90 mm

    Rear Travel

    80 mm

    Front Brake

    Hydraulic single disc brake

    Rear Brake

    Mechanical leading trailing drum brake
